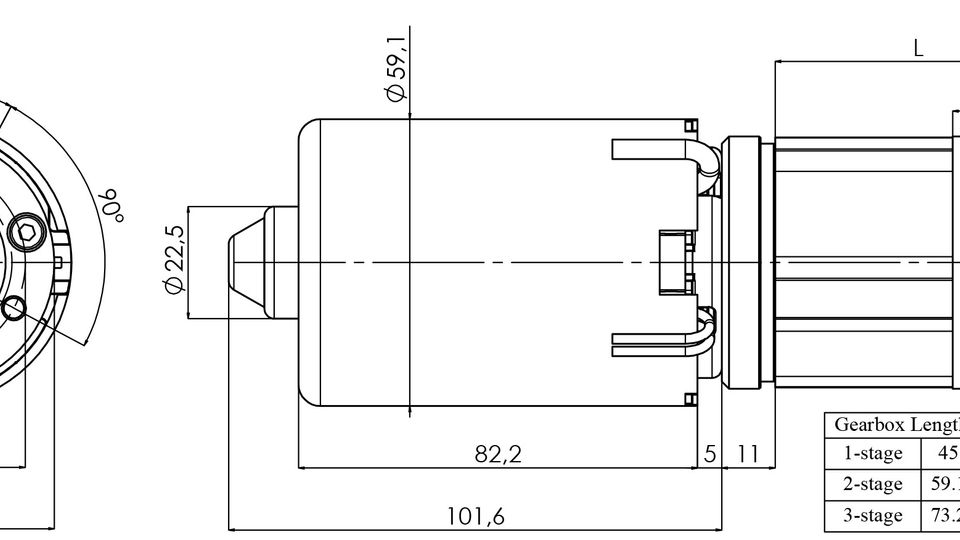

M59x30-H_PK52

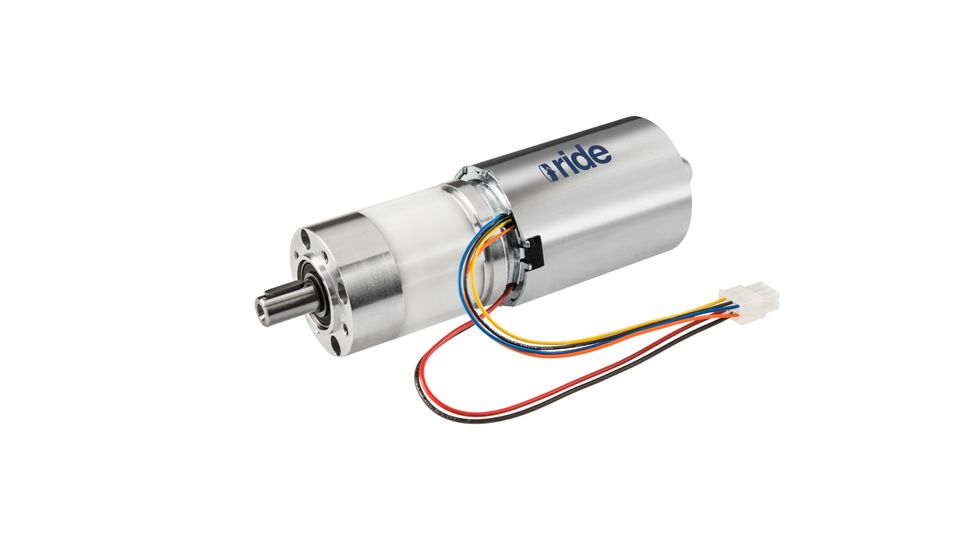

The M59x30-H electric motors are equipped with a filter and a circuit with one or two Hall sensors. The PK52 planetary gearboxes have both toothed wheels and housing made of plastic.

The Hall sensor supplies a signal which allows to count the number of rotations made by the motor. With two Hall sensor it is possible to determine also the rotation direction of the electric motor.

The filter, generally made of an LC-circuit, allows the electric motors to be tested in compliance with the EMC norms.

In the technical data-sheet it is possible to select the circuit with one or two Hall sensors and to request a particular set of cables or a special output gear shaft, different from the represented standard, by indicating them in the requirements form.

In the “Electric Data” table is indicated the range of working voltages of M59x30-H_PK52 planetary gear motors and are listed the performances for the most commonly used voltages, 12V and 24V.

The interactive curve allows to choose the required performances by selecting the power voltage, no-load speed and the gear ratio at one, two or three stages.
