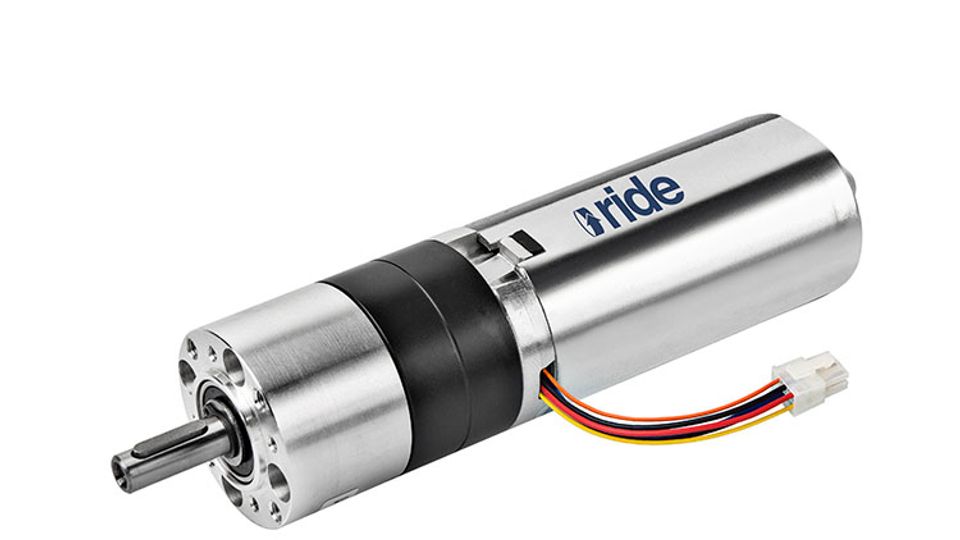

M42/39-H_PM42LN

The M42/39-H electric motors are equipped with EMC filter and with encoder, consisting of a magnetic ring and a circuit with one or two Hall sensors.

The PM42LN planetary gearboxes have both toothed wheels and the toothed peripheral crown made by metal.

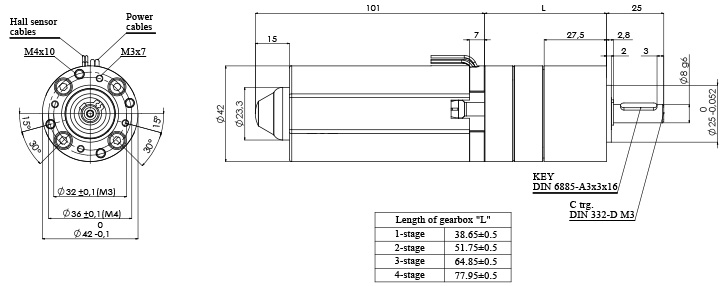

In the technical interactive datasheet is available the motor drawing and it’s possible to choose the gearbox shaft and the EMC filter type.

About the encoder, it’s possible to select the type and the number of the Hall sensors on the circuit, the number of poles of the magnetic ring and for each combination sensors-magnetic ring is represented the outcoming signal.

To define the characteristic curve with the preferred performances it’s sufficient to write power voltage and no-load speed and gear ratio in one, two or three stages within the indicated, allowed ranges or, more simply, it’s available the pre-defined characteristic curve.

Every selected option is saved automatically in the below enquiry form, in witch it’s possible to load files.

In the chart “Electrical Data” are indicated the performances values for the most commonly used voltages, 12V ad 24V.
